Single-Skin Shelters
X1 Raid
£699
Including UK VAT.

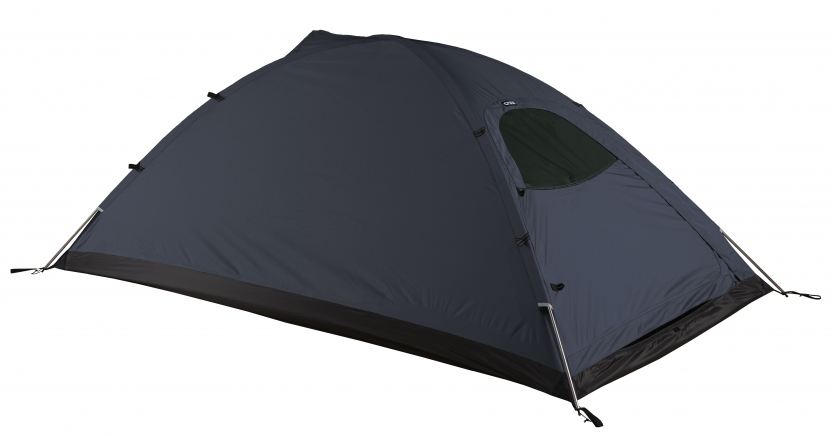

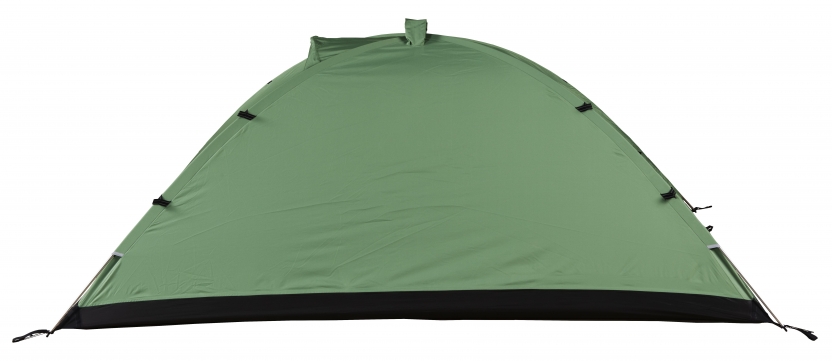

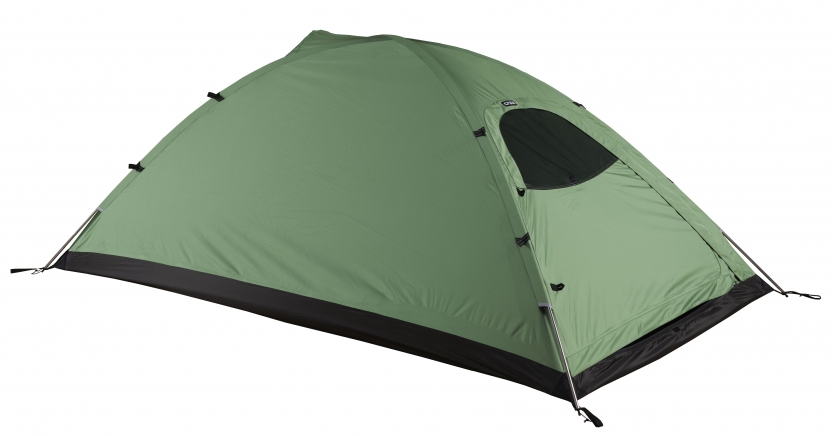

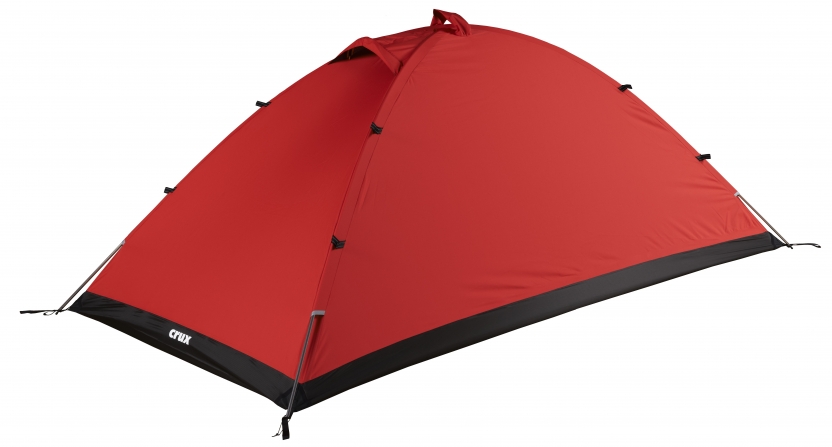

The X1 Raid is the smallest and simplest of our single-skin tent range. Although it is a conventional 2-pole, Bibler-style bivouac tent, what sets it apart from the competition is our unique, X-tex fabric. Using a coating technology with activated carbon, it introduces a new and quite revolutionary means of managing condensation that is greatly superior to conventional breathable membranes. To read more about X-tex, click here
There are subtleties in the X1 Raid’s design that are not immediately evident to the eye, however. The poles are inserted through external pole sleeves, making it quicker and easier to pitch. This also means that the guy points loop around the poles themselves, taking stress directly off the seams.
THE DETAILS
Know your equipment.
- Central roof vent
- Mesh panel in door
- Two internal pockets
- Poles inserted through external pole sleeves
- Eight guy points
- Supplied with 4 x 2 mm Dyneema guylines with mini-Linelok adjusters, 2 m length
- Supplied with 6 x alloy pegs and 4 x titanium pegs
Specifications+
| People | 2 |
|---|---|
| Total weight | 1500 g (complete) |
| Tent body | 985 g |
| Poles | 335 g |
| Bags, pegs, guys | 180 g |
| Flysheet | Waterproof and breathable X-tex 132 g/m², 50 denier, polyester ripstop 20,000 mm hydrostatic head PU/activated carbon 25,000 g/m²/24hr MVTR |
| Groundsheet | 70 g/m², 40 denier, ripstop nylon 6.6 10,000 mm hydrostatic head TPU coating |
| Poles | 2 x 8.50 mm Ø DAC Featherlite NSL |
| Guylines | 4 x 2.00 mm Dyneema with mini-Linelok adjusters, 2 m length |
| Pegs | 6 x DAC V-pegs, 12 g each 4 x Titanium pegs, 7 g each |
| Packed size | 45 cm x 15 cm Ø |
| Made In | China |

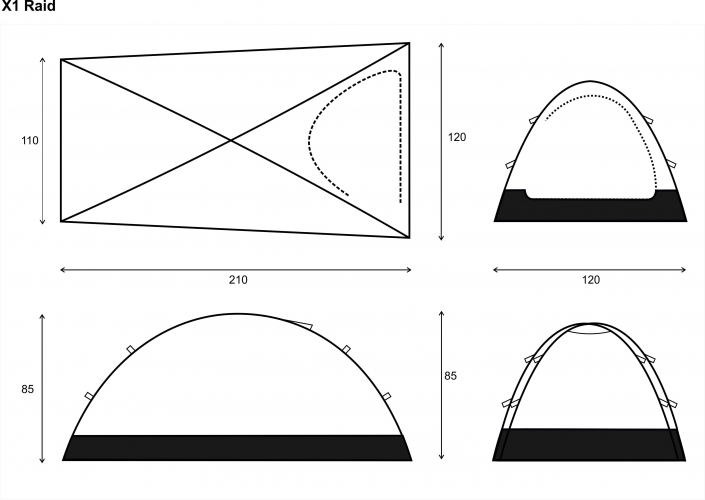

Dimensions+
| Inner length | 210 cm |
|---|---|
| Inner width | 120 cm |
| Inner height | 85 cm |
Care & maintenance+
Storage
Always ensure your tent is completely dry after a trip before packing it away for any length of time. Tents can get stains and mildew if stored in a damp condition – and once these occur, they are almost impossible to remove.
Cleaning
The best way to clean your X1 Raid is simply to pitch the tent and wipe down with a cloth using a warm water and detergent mix. Never machine wash.
Groundsheet cleaning
Wipe down with a cloth using a warm water and detergent mix. Never machine wash – this will cause the PU coating to delaminate.
Poles
Over time, the elastic cord inside the poles may lose its stretch. In this case, unscrew the pole foot at one end, untie the elastic and pull it through until there is sufficient tension. Retie it to the pole foot, cut off the excess elastic and screw the pole foot back in. Don't let go of the elastic or you will find yourself re-threading all the sections!
